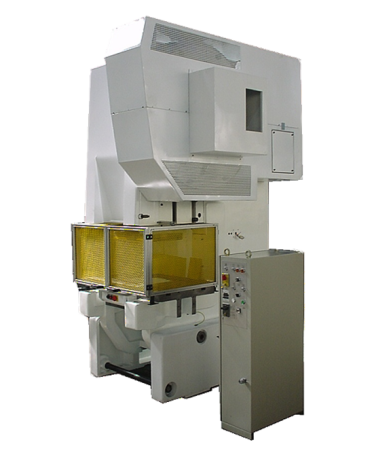

ECCENTRIC PRESS LE 63 C
Nominal forming force of the press:
Dimensions of the table work surface:
Number of strokes:
Stroke of the ram:
Rearrangement of the ram:
63t
800×630 mm
64 /min
10-105 mm
70mm
ECCENTRIC PRESS LEN 25 C
Nominal pressing force:
Dimensions of the table work surface:
Number of strokes:
Stroke of the ram:
Rearrangement of the ram:
25t
560 x 540 mm
8-85 zdvih/min
8-85 mm
55 mm
ECCENTRIC PRESS LE 160 C
Nominal forming force of the press:
Dimensions of the table work surface:
Clamping surface of the ram:
Number of strokes:
Stroke of the ram:
Rearrangement of the ram:
160t
1000 x 720 mm
700 x 380 mm
45 /min
20-120 mm
100mm

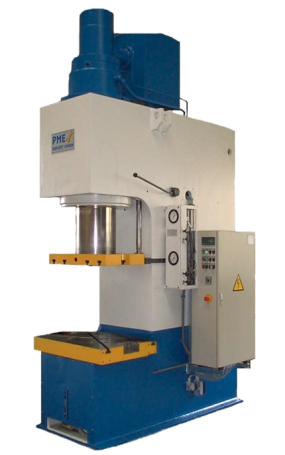

Press / Hydraulic / PYE 250 SSM
Nominal forming force of the press:
Dimensions of the table work surface:
Max. ram stroke:
Unloading:
Approach speed:
250t
900 x 630 mm
500 mm
360 mm
200 mm/s
Amob MB tube end formers include all common taper variants,
pipe end forming and other profiles. There is a choice of two, three and four station machines.

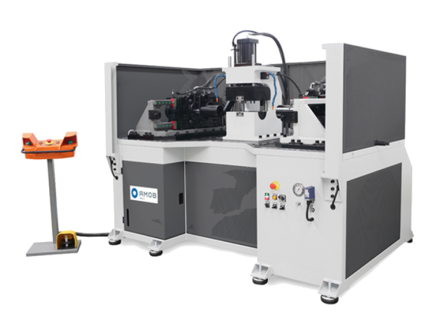

NC Pipe End Forming Machine AMOB MB 60/1 a MB60/2
this machine enables precise and high-quality forming of tube ends with serial repeatability.
machine for forming pipe ends, characterized by the ability to perform in 2-4 forming steps.
forming diameter (black steel) Ø60 x 2,5 mm
Dimension of square profile (black steel) 60 x 60 x 2.5 mm
forming force 12 tons

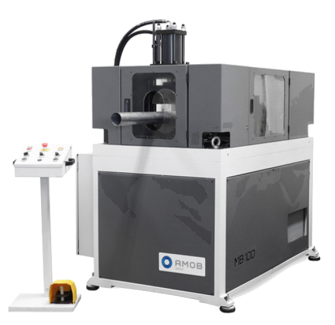

NC Pipe End Forming Machine AMOB MB 100/3
this machine enables precise and high-quality forming of tube ends with serial repeatability.
tube end forming machine, characterized by the ability to perform up to 3 forming steps.
forming diameter (black steel) Ø60 x 4 mm
forming diameter (stainless steel) Ø60 x 2,5mm
Dimension of square profile (black steel) 60 x 60 x 2.5 mm
forming force 12 tons

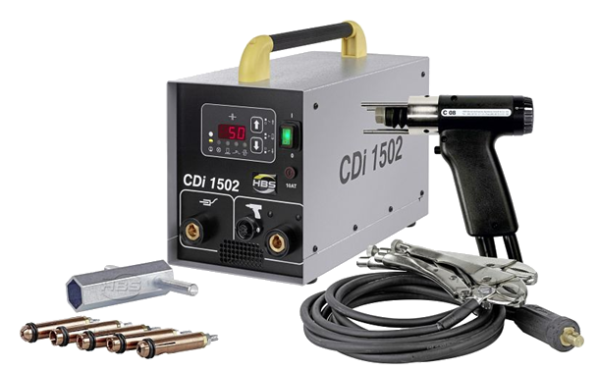

CDi 1502 inverter/condenser power supply
CDi 1502 welding inventory/condenser power supply 66mFa/1600 Ws for arc welding of studs according to EN ISO 14555. Applicable for M3-M8 (M10) Ø2-8 mm bolts (PT, UT, IT according to EN ISO 13918)

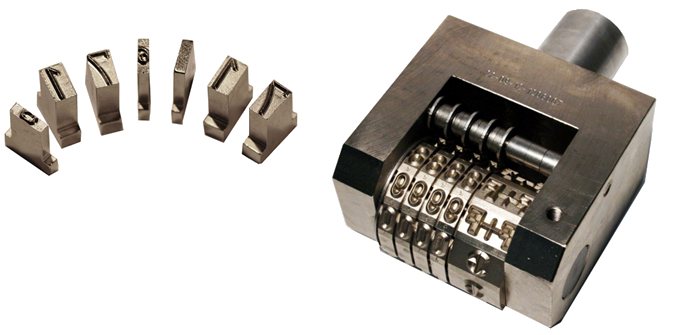

Stamps and punches – reliable marking method, high flexibility and simplicity.
Stamps and punches can be implemented in forming and cutting tools.
They are made of premium steel, guaranteeing a high degree of quality.
Hardness from 59-63 HRC
